Cube Audio

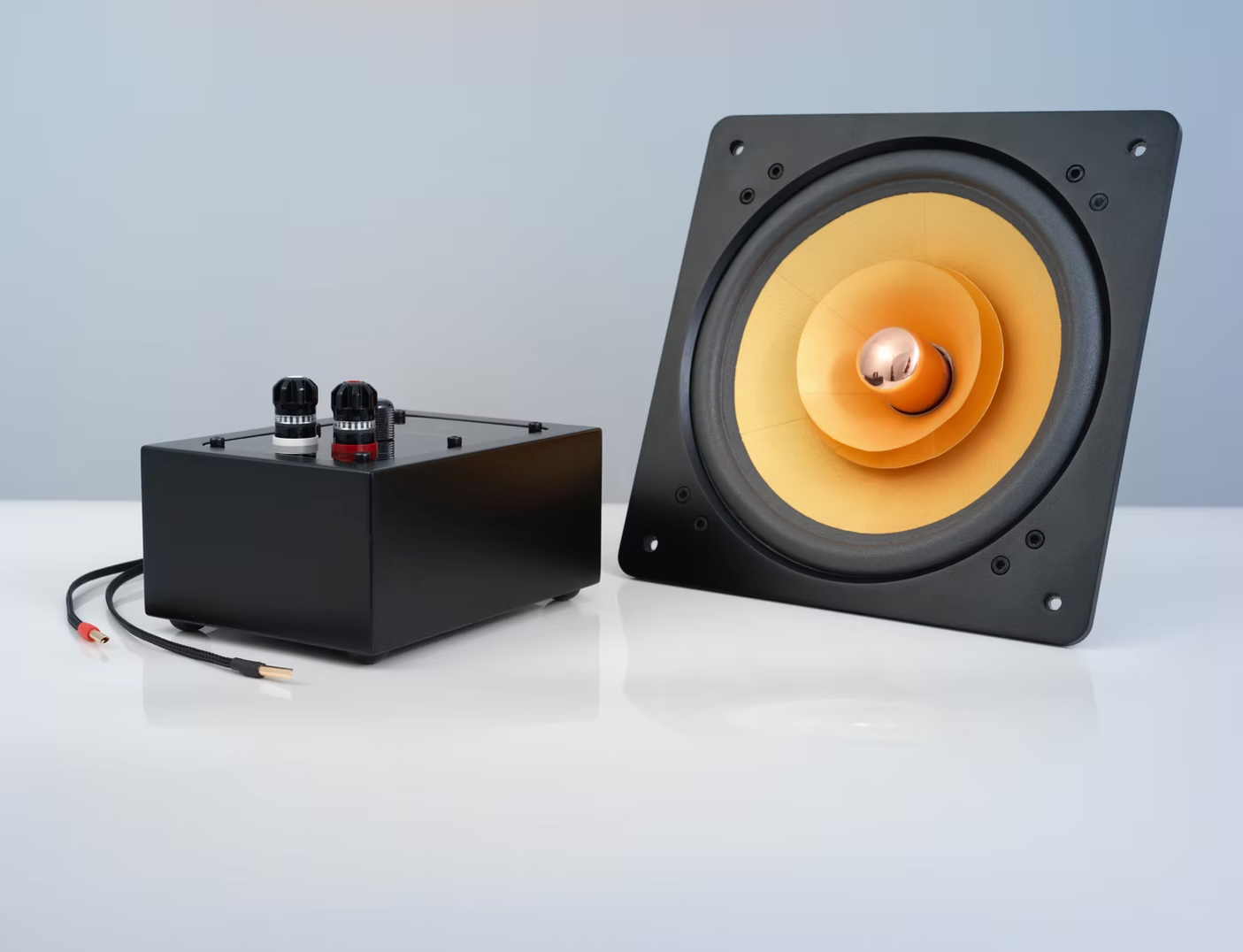

F10 Select v2

F10 Select v2

€3.000,00 EUR
€3.000,00 EUR
Sale Sold out
Taxes included.
Color: Black

Cube Audio magical sound character
Sounds excellent with tube and solid state amps
Underhung magnetic motor design
Great for Bass Reflex, Sealed, TQWT and Open Baffle designs
optional 4-stage mid tone correction module
No crossover is necessary for a single-driver speaker configuration
Price 3000 EUR without filter module, 4000 EUR with module

View full details

Cube Audio F10 Select v2 fullrange driver

F10 Select v2 is the newest 10" fullrange driver.  It opens the 10" line and is the easiest driver to apply in a DIY projects. Version 2 has additional mid tone filter module to make speakers easier to adapt to the electronics, room and preferences.Being a fullrange driver that requires no crossover while keeping high 8 Ohm impedance and  93 dB efficiency (depending on switch position) makes it perfect driver for any DIY design. We recommend bass reflex, TQWT or Open Baffle designs.

Thiele / Small parameters

Fs  = 28 Hz
Re  = 9,4 ohms
Le  = 0.138 mH
Qt  = 0.58
Qes = 0.63
Qms = 14.58
Cms = 0.72 mm/N
Mms = 30 g
Vas = 185 liters
Sd= 346 cm^2
Bl  = 9.2 Tm
Xmax = +- 2.5 mm*
Xdamage = +- 6 mm
Sensitivity = 93 dB
Impedance = 10 Ohms

* Voice coil remains in 100% of the magnetic field.

Drivers

Dimensions

Speaker dimensions:
Width / height = 260 mm
Depth = 107 mm
Weight = 6 kg
